Fabrication-ready drawings & BIM solutions
DRAFTXCELLENT STEEL DESIGN ENGINEERING LLP is a professional steel structure detailing company delivering accurate, fabrication-ready drawings and BIM coordination services.
We work closely with fabricators, contractors, and consultants to ensure constructability, compliance with international standards, and smooth execution from shop to site.
All critical 2D output sheets required for site work and fabrication.
Reports and files essential for automated fabrication and logistics.

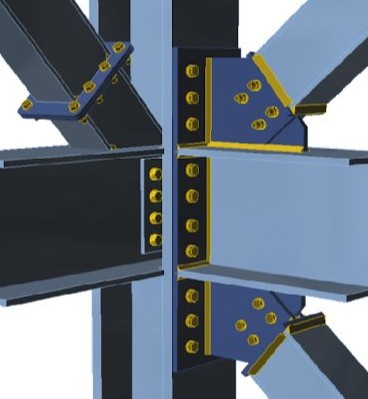

Safe and efficient bolted & welded structural connection design.
Clash-free models with interdisciplinary coordination.
Accurate BOM, cut lists, and steel weight schedules.
Shop coordination, revision control, and QA/QC assistance.
At DRAFTXCELLENT STEEL DESIGN ENGINEERING LLP, we approach every project with precision and commitment—regardless of size or complexity.
Our drawings are clean, accurate, and directly usable for shop fabrication—no confusion, no rework.
We strictly follow AISC and project-specific standards to ensure safety and approval-ready deliverables.
Clash-free 3D models coordinated with civil, architectural, and MEP teams.
Committed schedules, controlled revisions, and dependable delivery timelines.
Email: sam@draftxcellentsteel.com
Phone: +1 213-527-6361
Address: Vaishali Nagar, Ward No. 6, Front of Kanya Shala, Gadchandur, Chandrapur – 442908, Maharashtra, India
